Spiral vs Rectangular Duct: Cost, Performance & Production Trade-offs

Spiral duct and rectangular duct serve the same job but trade off across three axes: cost, performance, and production. Spiral duct cuts pressure drop by 20 to 30 percent and installs about 50 percent faster. Rectangular duct fits tight ceiling spaces and ships flat-packed for lower freight cost. Neither type is universally better. The right pick depends on project layout, factory capacity, and target market.

This article compares the two duct types across material cost, airflow performance, and production line requirements. It ends with a clear decision guide for HVAC contractors and factory owners. Benchmarks reference SMACNA HVAC Duct Construction Standards and ASHRAE 90.1 guidance.

What are spiral duct and rectangular duct?

Spiral duct is a round HVAC duct made by winding a metal strip into a tube with a locked seam. Rectangular duct is a four-sided HVAC duct made from flat metal panels joined at the corners. Both move conditioned air, but their shapes drive different cost and performance profiles.

Spiral duct is a round HVAC air duct that is made by winding a galvanized, aluminum, or stainless steel strip into a tube and locking the edges into a continuous spiral seam. Standard sizes range from 80 mm to 2,000 mm. The continuous seam keeps the duct strong even at thin gauges, which lowers material weight per linear meter.

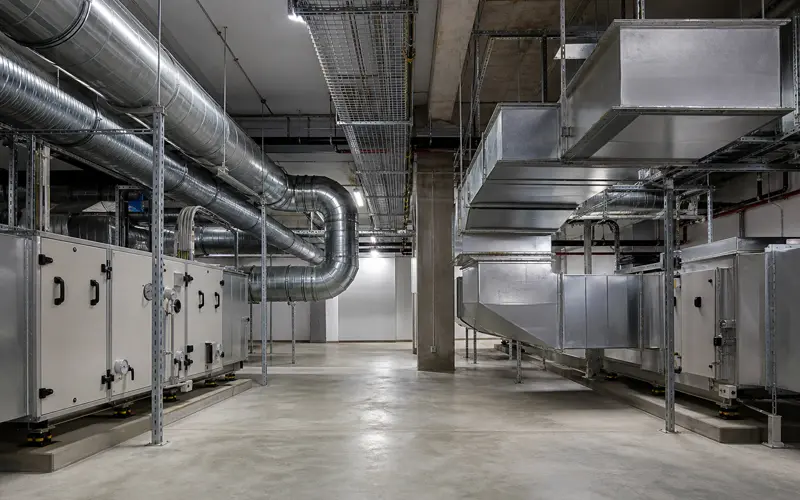

Rectangular duct is a four-sided HVAC air duct that is made from flat metal panels joined with Pittsburgh or snap-lock seams along their length and reinforced with corner connectors. It is used most often above ceilings in commercial and residential buildings. Flat panels accept internal lining for sound or thermal control.

How do spiral duct and rectangular duct differ in airflow performance?

Spiral duct cuts pressure drop by 20 to 30 percent compared with rectangular duct of the same air volume. Its round shape reduces friction and turbulence. Rectangular duct loses more pressure at sharp corners and leaks more air at its many seams.

The table below summarizes the three main performance differences using SMACNA and ASHRAE benchmarks.

Performance metric	Spiral duct	Rectangular duct
Pressure drop (relative)	Baseline	20–30% higher
SMACNA leakage class	Class 3–6	Class 12 or higher
Typical leakage rate	1–2%	10% or higher
Noise from duct vibration	Low	Moderate to high
Surface area per CFM	Lower	Up to 46% higher

Pressure drop and friction loss

The round shape of spiral duct minimizes wetted perimeter. A smooth interior surface reduces turbulence at the duct wall. Lab tests show 20 to 30 percent lower pressure drop than rectangular duct at equal flow capacity. Lower pressure drop allows smaller fans and air handlers, which cuts equipment cost upstream of the duct itself.

Air leakage rates and SMACNA leakage class

Spiral duct typically meets SMACNA Leakage Class 3 to 6, or about 1 to 2 percent leakage. Rectangular duct often falls into Class 12 or higher without aggressive sealing, with leakage above 10 percent. The continuous spiral seam removes the longitudinal joint that accounts for roughly 15 percent of rectangular duct leakage.

Noise and vibration

Round walls resist drumming because curved surfaces dampen pressure pulses. Rectangular flat panels vibrate under high static pressure and produce audible noise. Spiral duct stays quieter in office, school, and healthcare buildings where noise control matters.

How do spiral duct and rectangular duct compare in cost?

Spiral duct uses 30 to 50 percent less sheet metal and installs about 50 percent faster than rectangular duct. With 10 to 20 percent yearly fan energy savings, spiral systems often pay back any extra material cost within 24 to 36 months.

Material cost per equivalent air volume

Spiral duct uses 30 to 50 percent less sheet metal for the same airflow capacity. Lower weight cuts crane and lifting cost on site. The continuous seam preserves strength at thinner gauges, which reduces raw material spend per linear meter.

Installation labor and hanger requirements

Spiral duct installs faster because it ships in 3 to 6 meter sections that slide together with simple slip joints. Rectangular duct needs more transverse joints, sealant, and corner connectors. Spiral systems require about 20 percent fewer hangers and supports because the duct weighs less.

Long-term operating cost and payback period

Lower pressure drop reduces fan motor load by 10 to 20 percent each year. Tighter seams cut conditioned air loss to under 2 percent. Combined energy and labor savings often pay back the spiral duct cost within 24 to 36 months on commercial projects. ASHRAE 90.1 favors low-leakage duct designs.

How do spiral duct and rectangular duct production lines differ?

A spiral duct line uses one continuous forming machine that turns coil stock into finished pipe in a single pass. A rectangular duct line needs multiple stations — cutting, notching, folding, seaming, and corner closing — and uses more floor space and labor per output unit.

Spiral duct forming line

A spiral duct forming machine pulls strip from a decoiler, runs it through a forming head, locks the edges into a helical seam, and cuts the finished pipe to length. One operator can run the full line. Output is measured in linear meters per minute. Floor space stays compact compared with rectangular setups.

Rectangular duct fabrication line

A rectangular duct line requires a coil line, plasma or shear cutting, notching, flange forming, Pittsburgh seaming, corner closing, and leak testing. Each station needs a trained operator. Output is measured in finished sections per hour. The full line covers significantly more factory floor than a spiral setup.

Floor space, output speed, and freight logistics

Spiral lines occupy less floor area but need more storage for finished rigid pipe. Rectangular sections ship flat-packed or nested, cutting freight volume by up to 70 percent. Spiral duct ships as rigid lengths with bulkier freight but assembles on site within minutes. Export-oriented factories balance these freight economics across regions.

What are the advantages and disadvantages of spiral duct?

Spiral duct offers lower leakage, faster installation, less pressure drop, and a clean look for exposed ceilings. Drawbacks include higher cost per round fitting, larger ceiling clearance for the same air volume, and bulkier freight than flat-packed rectangular shipments.

The list below shows the main spiral duct trade-offs.

Advantages of spiral duct:

• Air leakage of 1 to 2 percent (SMACNA Class 3 to 6)
• Installation 50 percent faster on average
• Pressure drop 20 to 30 percent lower
• 30 to 50 percent less sheet metal per CFM
• 20 percent fewer hangers required
• Suitable for exposed ceiling architecture
• 10 to 20 percent fan energy savings per year

Disadvantages of spiral duct:

• Round fittings cost more per piece
• Needs more vertical clearance than rectangular at equal cross-section
• Bulkier freight with higher truck volume
• Fewer installers experienced with round duct in some regional markets

What are the advantages and disadvantages of rectangular duct?

Rectangular duct fits low ceilings, ships flat-packed for low freight cost, accepts internal lining for sound or heat, and uses cheaper flat sheet stock. Drawbacks include higher leakage, more installation labor, greater pressure loss at corners, and heavier reinforcement at large duct sizes.

The list below shows the main rectangular duct trade-offs.

Advantages of rectangular duct:

• Fits ceiling clearances below the round equivalent
• Ships flat-packed or nested, cutting freight volume by 70 percent
• Easy to add thick internal acoustic or thermal lining
• Familiar to most sheet metal contractors
• Custom sizes match unique project dimensions

Disadvantages of rectangular duct:

• Leakage of 10 percent or higher without aggressive sealing
• Installation labor 50 percent higher than spiral
• Pressure drop 20 to 30 percent higher at equal CFM
• Heavier corner reinforcement at large duct sizes
• More joints, sealant, and gasket cost

How to choose between spiral duct and rectangular duct?

Spiral duct fits high-velocity systems, exposed ceilings, and energy-code projects. Rectangular duct fits low-clearance plenums and low-velocity main trunks. Factories serving full-range HVAC contractors should run both production lines to capture the full project order from one buyer.

When to choose spiral duct

Spiral duct fits projects where pressure drop, leakage, and installation speed matter most. Specifiers select spiral for medium-to-high-velocity systems above 1,500 FPM. Architects choose spiral for retail, office, gym, and airport ceilings where the duct stays exposed. Energy codes such as LEED and ASHRAE 90.1 reward the lower leakage class.

When to choose rectangular duct

Rectangular duct fits projects with tight ceiling plenums and low air velocity. Designers select rectangular for large-cross-section main trunks where height clearance is fixed. Renovation jobs match existing duct geometry. Internal acoustic lining is easier to install on flat panels than on round walls.

When to produce both spiral and rectangular duct in one factory

Factory owners running both lines capture full-range demand and reduce single-product risk. Full-service HVAC contractors specify both shapes within one project. Trunk-and-branch orders bundle rectangular mains with spiral runs. Dual-line factories also balance freight economics across export markets that prefer different shipping formats.

The right duct choice depends on project type, building constraints, and market position. Spiral duct wins on airflow, leakage, and lifecycle cost. Rectangular duct wins on ceiling fit, freight, and custom sizing. Most modern HVAC factories run both production lines to serve the full demand profile. A custom production line setup matches output capacity, gauge range, and factory layout to the buyer’s actual market.

FAQ

Is spiral duct cheaper than rectangular duct overall?

Spiral duct costs less overall on most commercial projects. Material savings of 30 to 50 percent and installation savings of 50 percent more than offset the higher per-piece fitting cost. Long-term fan energy savings add another 10 to 20 percent yearly reduction.

Can rectangular duct match spiral duct leakage performance with sealant upgrades?

Rectangular duct can reach SMACNA Leakage Class 3 to 6 with full sealant upgrades and pressure-rated joints. The upgrade adds material and labor cost. Spiral duct reaches the same leakage class without extra sealing because of its continuous helical seam.

Is spiral duct suitable for residential HVAC systems?

Spiral duct works in residential HVAC where ceiling clearance permits the round profile. Homes with exposed ceilings or modern architecture suit the look well. Standard residential systems still favor rectangular duct for concealed plenums above drywall.
